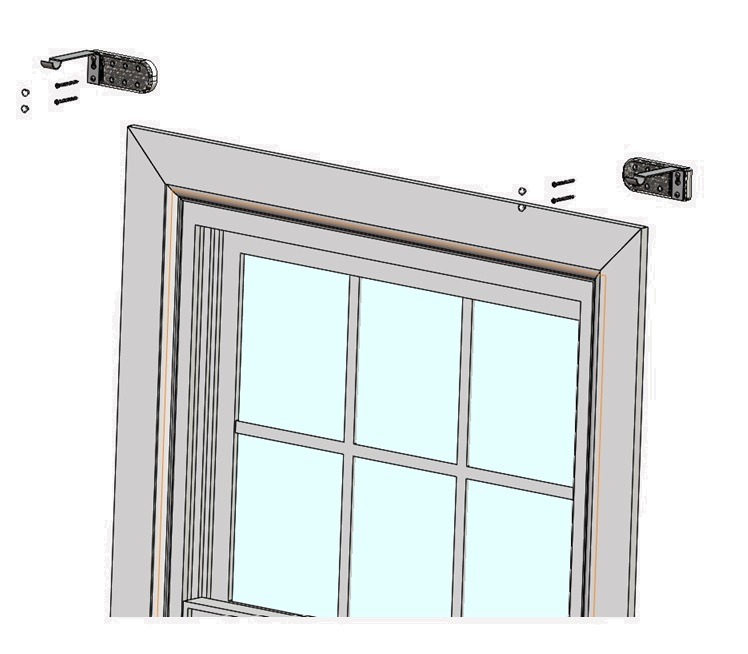

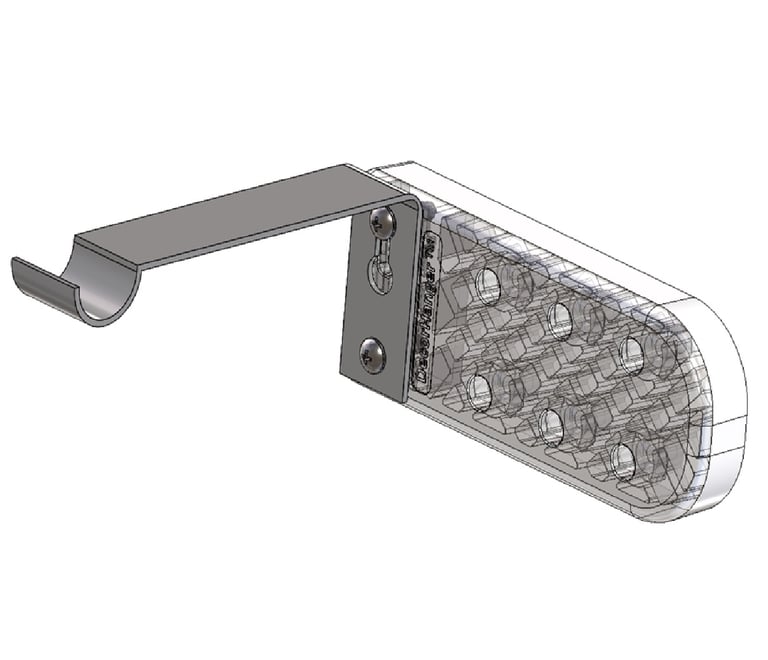

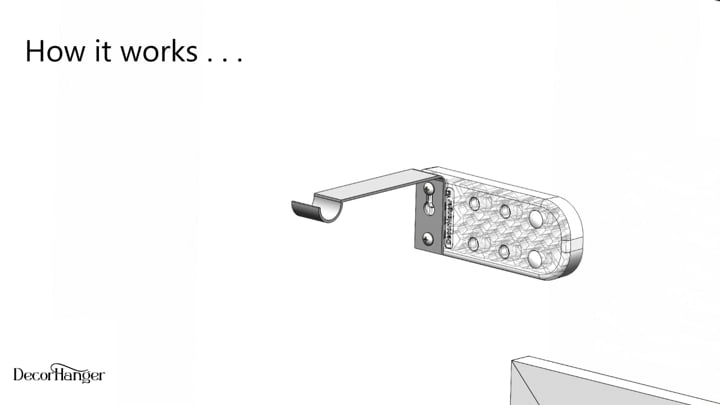

Attach your curtain rod bracket to the NZJOVQWP Adapter Bracket.

Screw the NZJOVQWP Adapter Bracket to the wall. The screws go thru the drywall into the wooden wall stud.

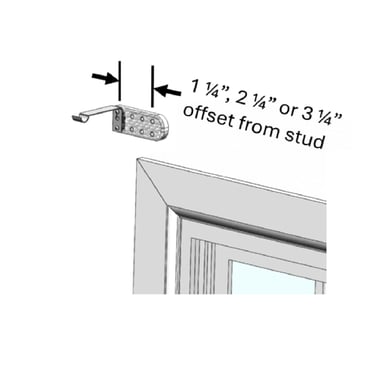

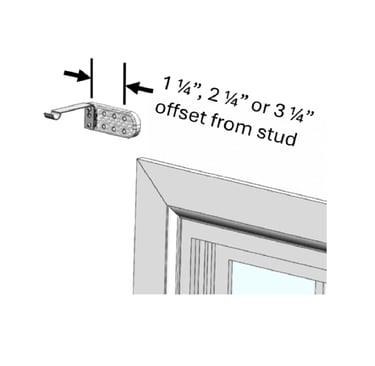

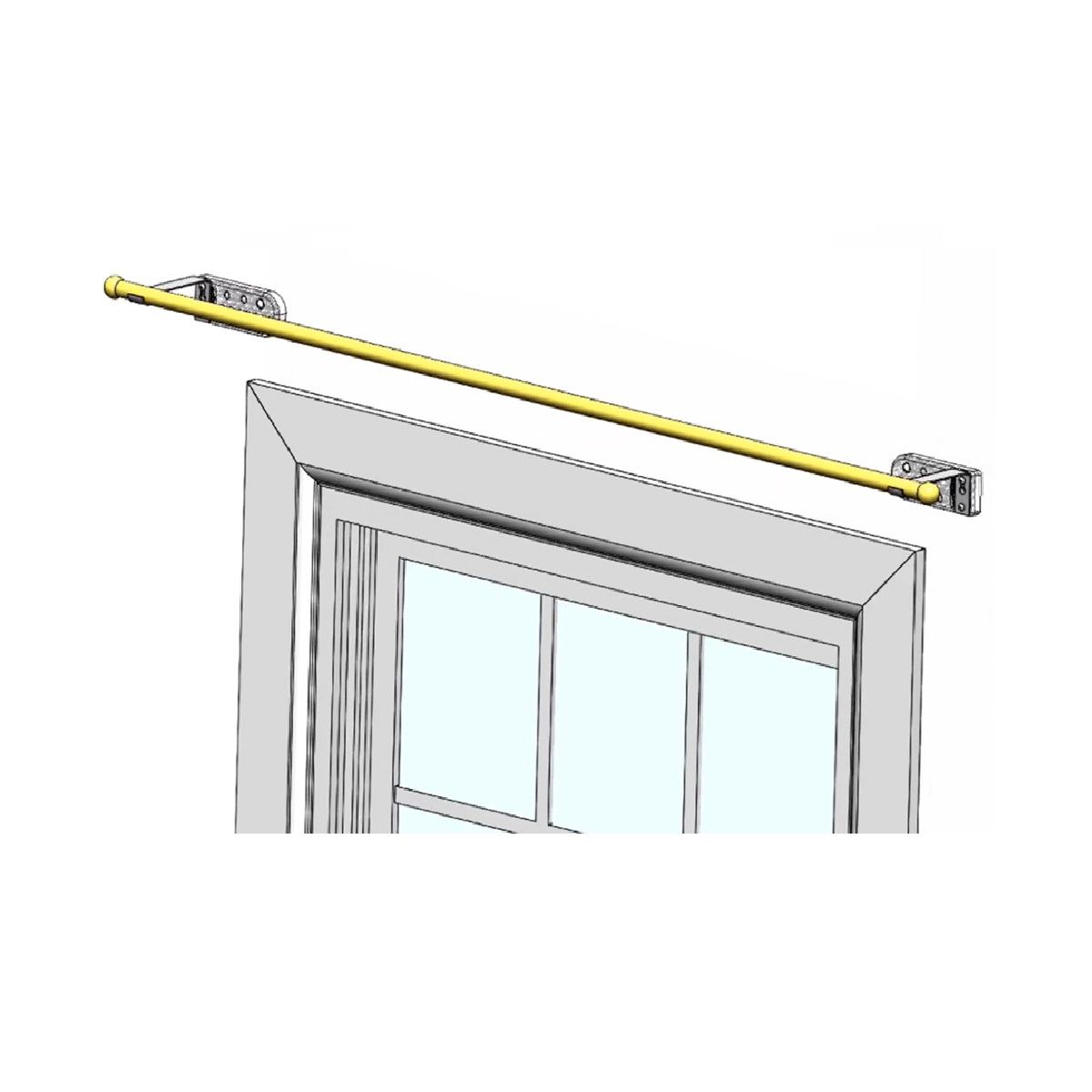

Your curtain rod bracket is now located beyond the edge of the window trim without using drywall anchors. The NZJOVQWP   Adapter Bracket attaches it to the stud!

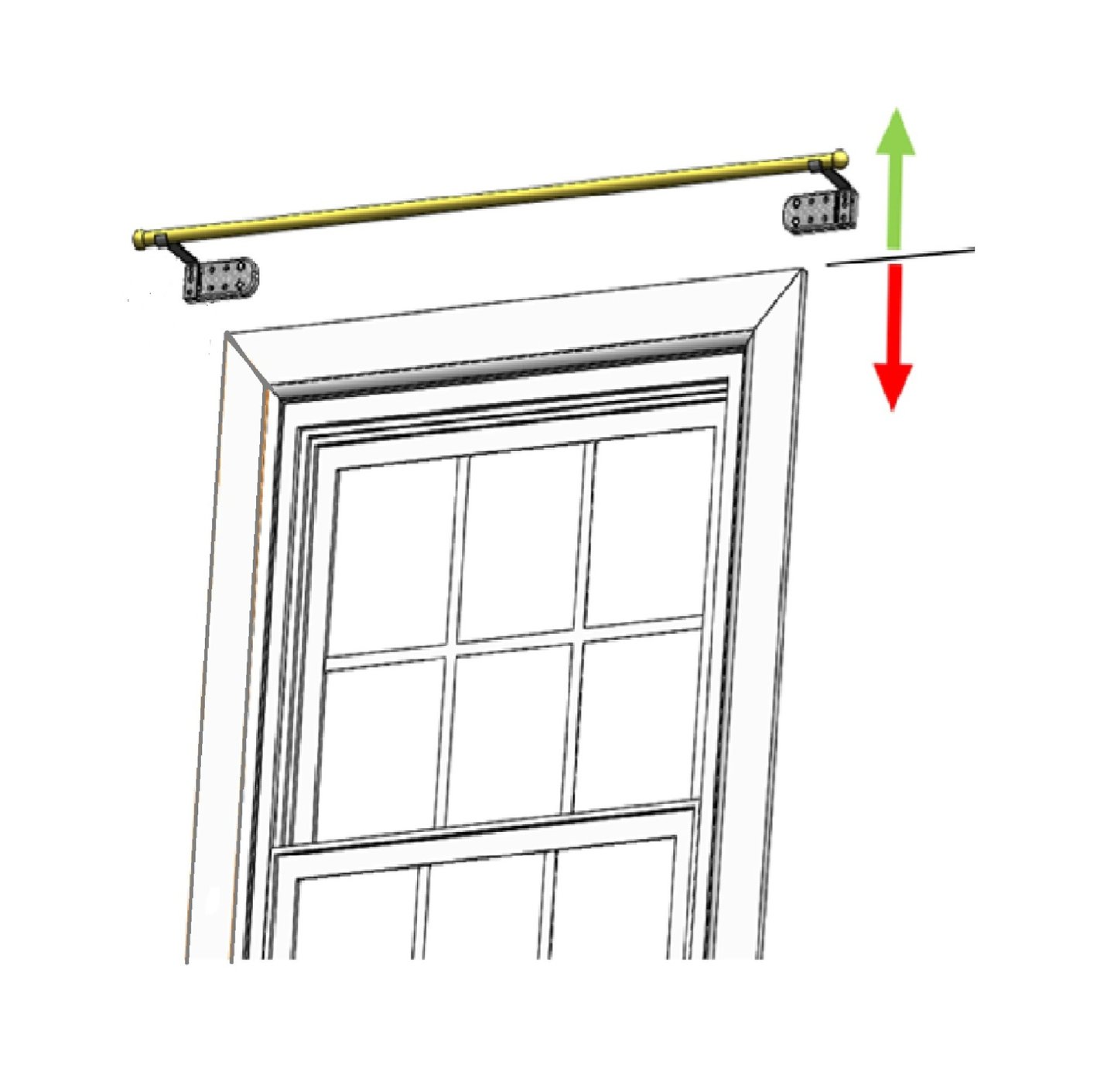

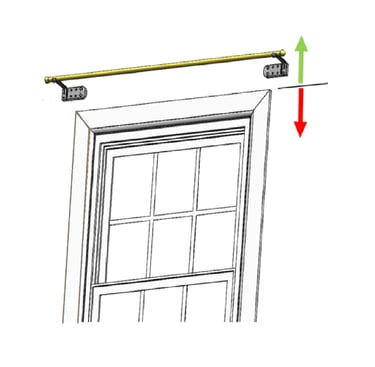

NOT for use below top of trim

NZJOVQWP Adapter Bracket is for use above trim

Mounts to the stud through the drywall

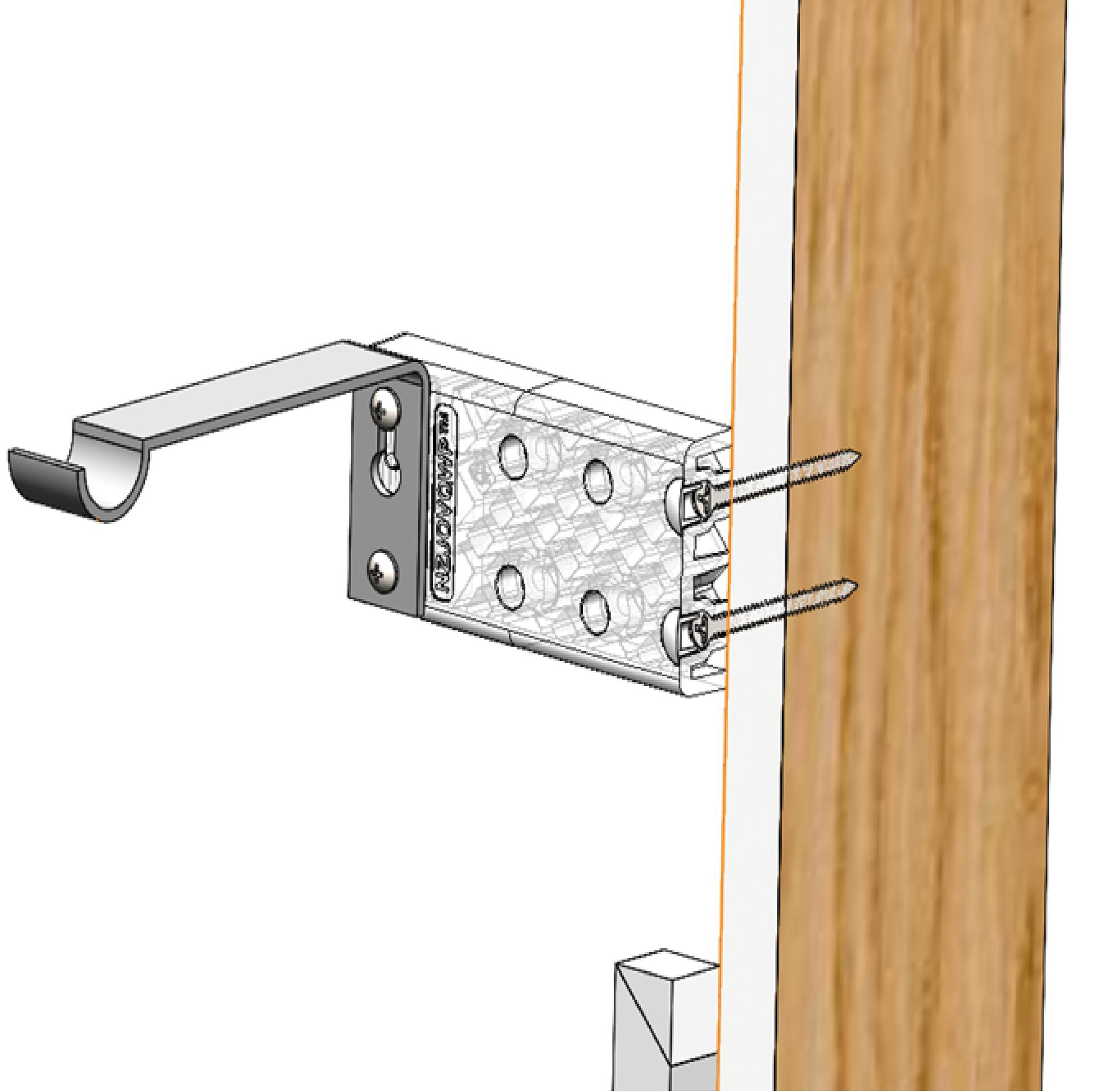

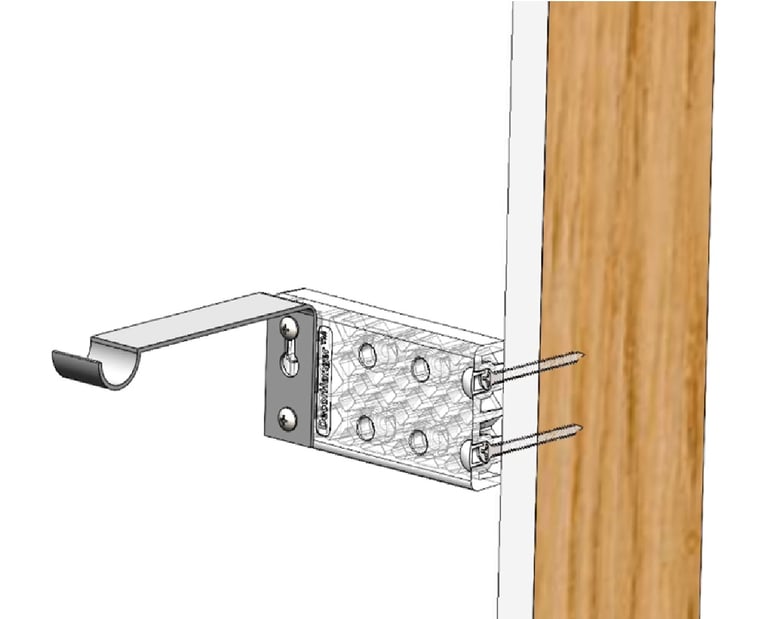

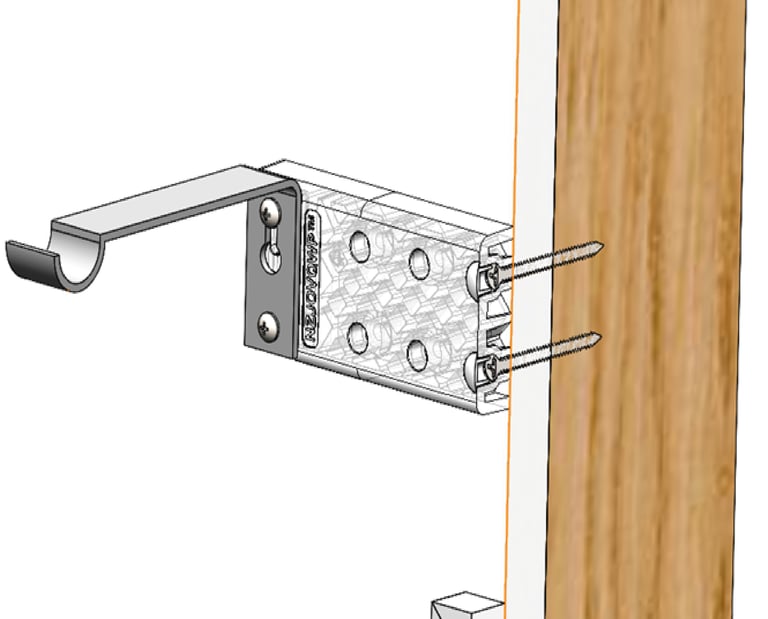

Cross-Section Cutaway View

CAUTION: To prevent accidents, make sure that the woodscrews screw into the stud. Fastening just to the drywall will likely result in the NZJOVQWP Adapter Bracket coming loose and falling off the wall.

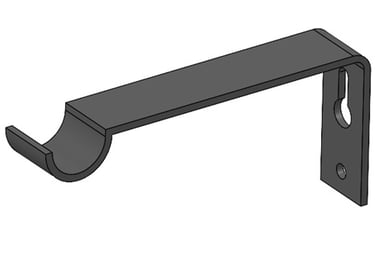

Your curtain rod bracket

NZJOVQWP bracket

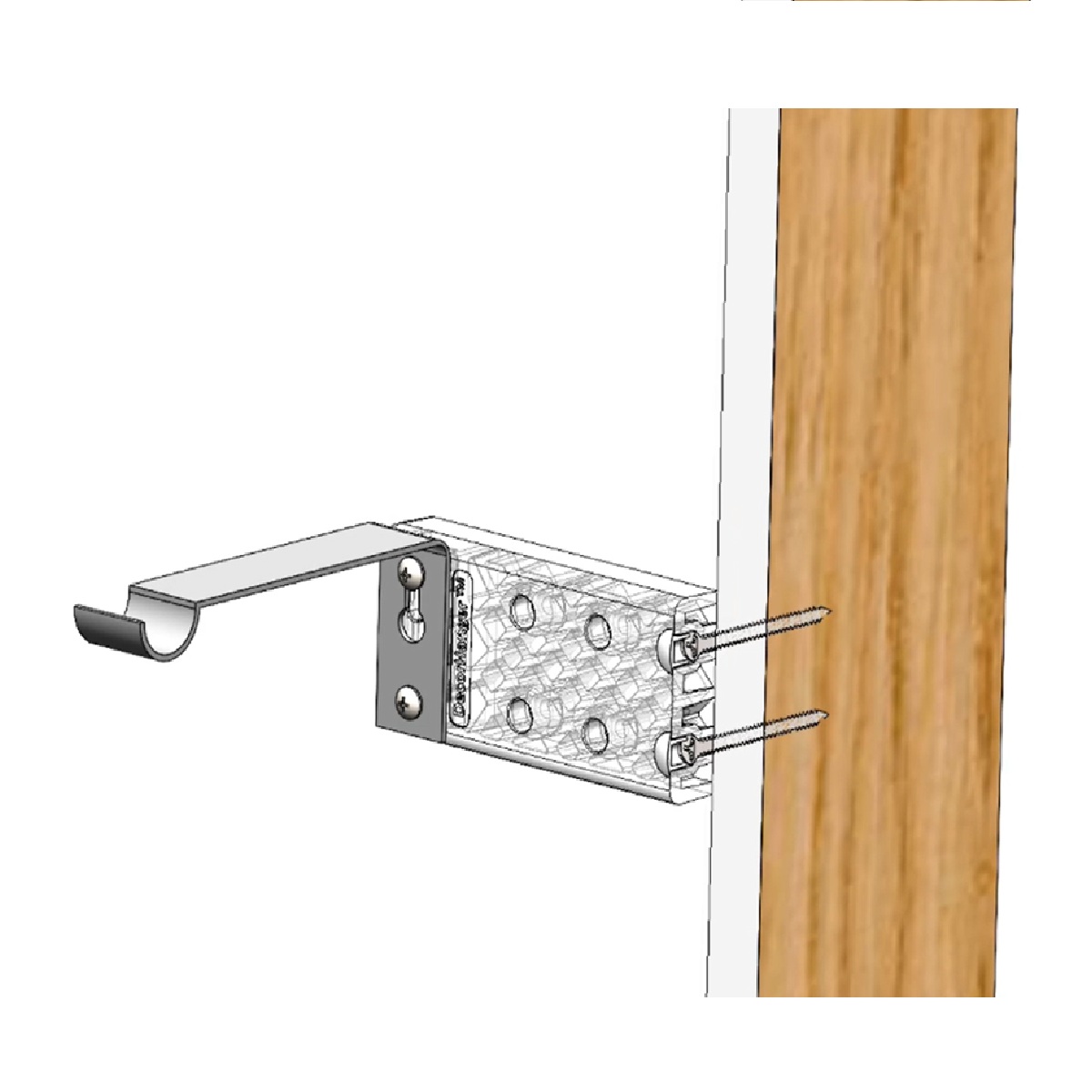

The NZJOVQWP Adapter Bracket sits on your drywall and is screwed thru the drywall into the wall studs behind the drywall.

Creates a strong mounting point for your curtain rod bracket, beyond the edge of the window trim, with NO DRYWALL ANCHORS.

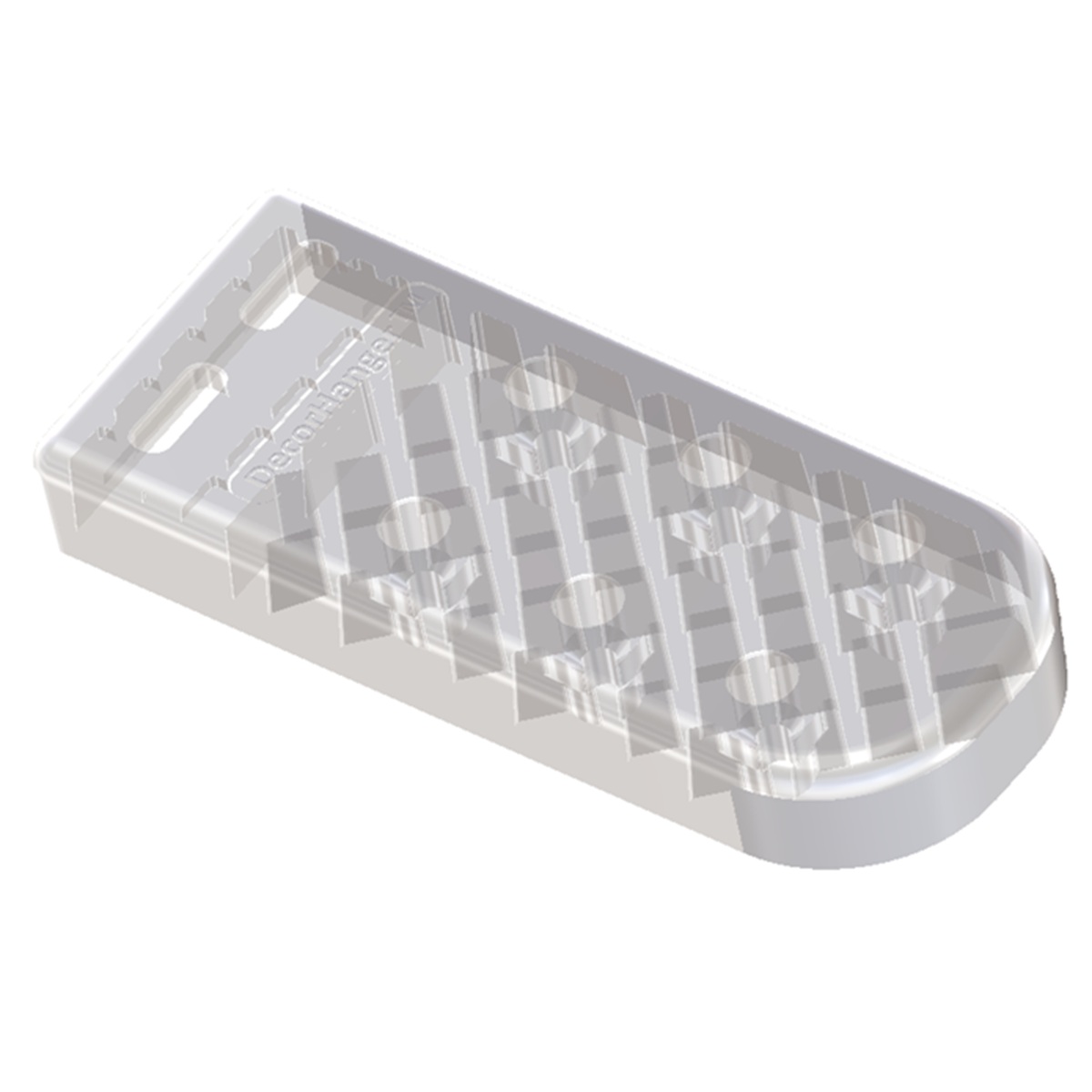

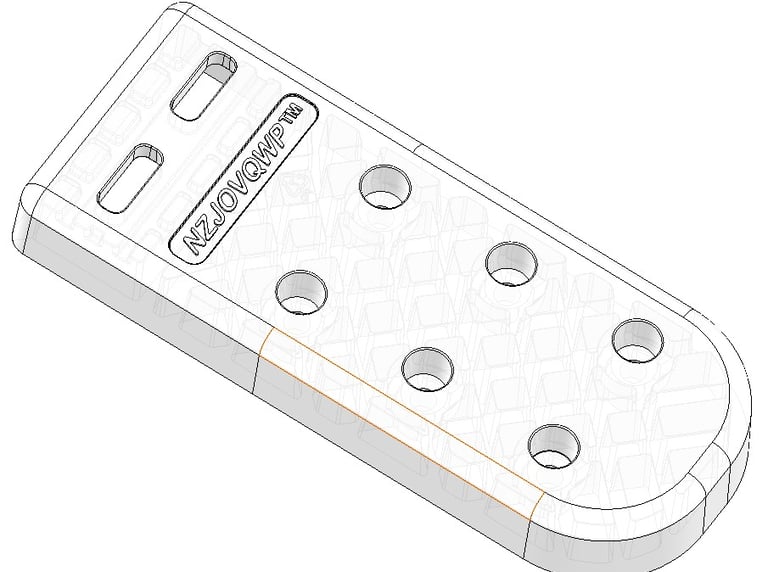

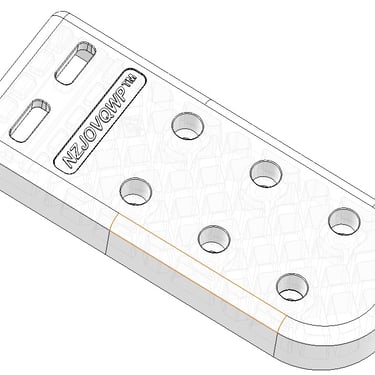

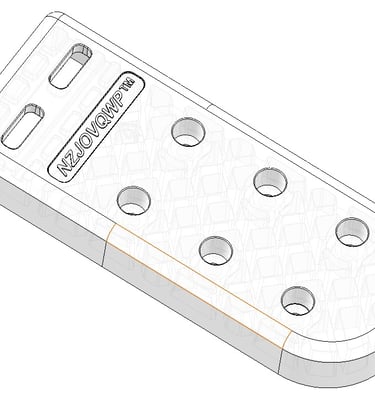

Made of clear, transparent, strong polycarbonate.

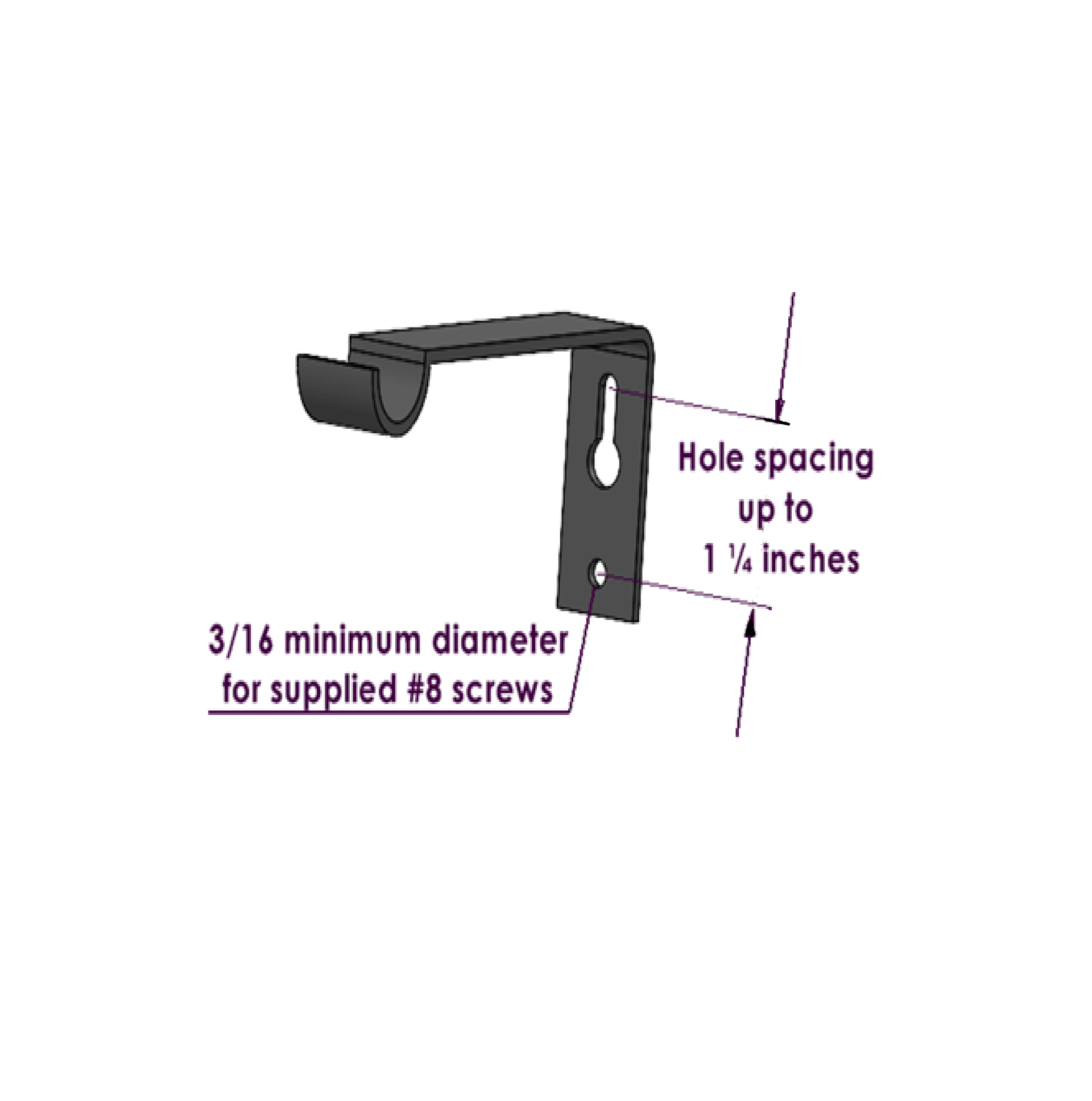

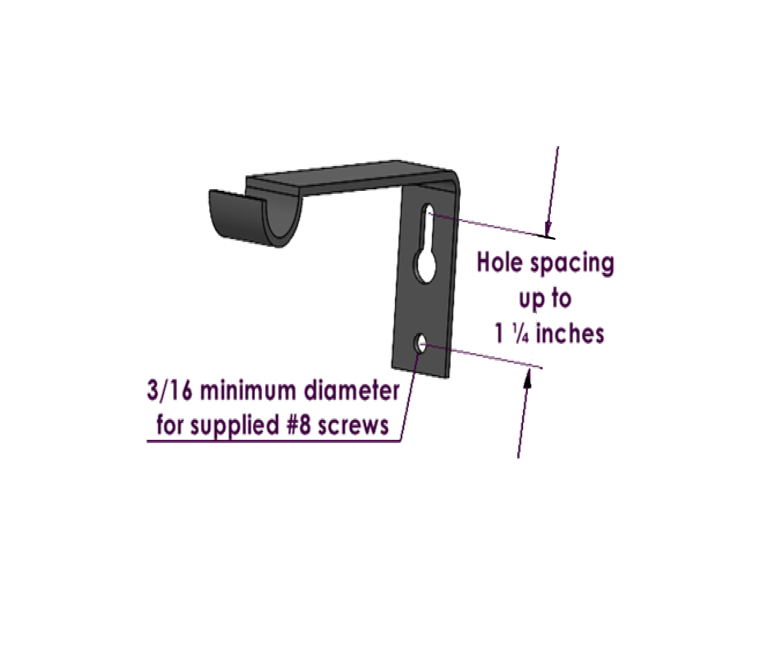

Works with your L-shaped curtain rod brackets that have:

• 3/16 inch holes or slots (for #8 wood screws)

• Hole spacing up to 1 1/4 inches

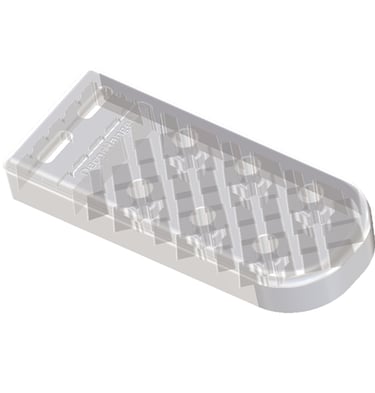

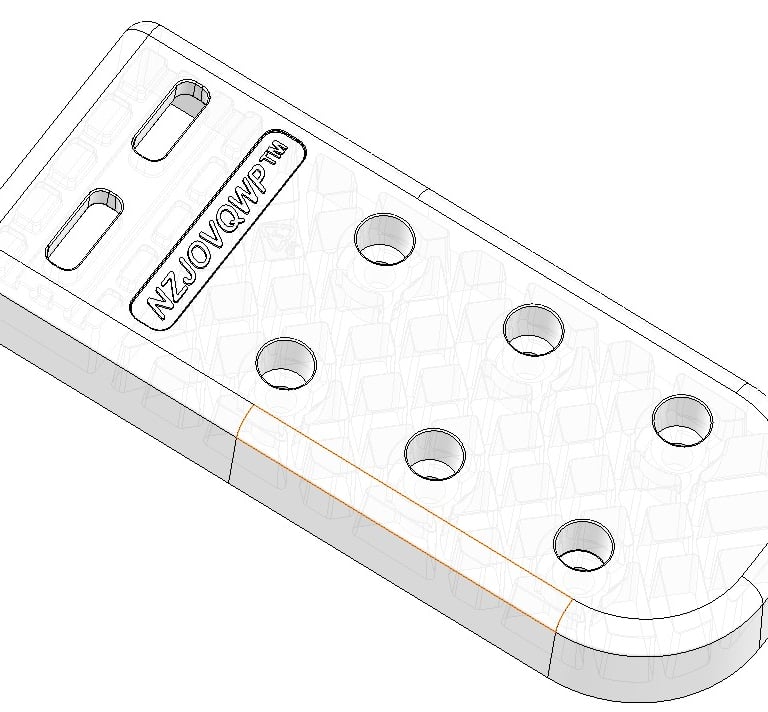

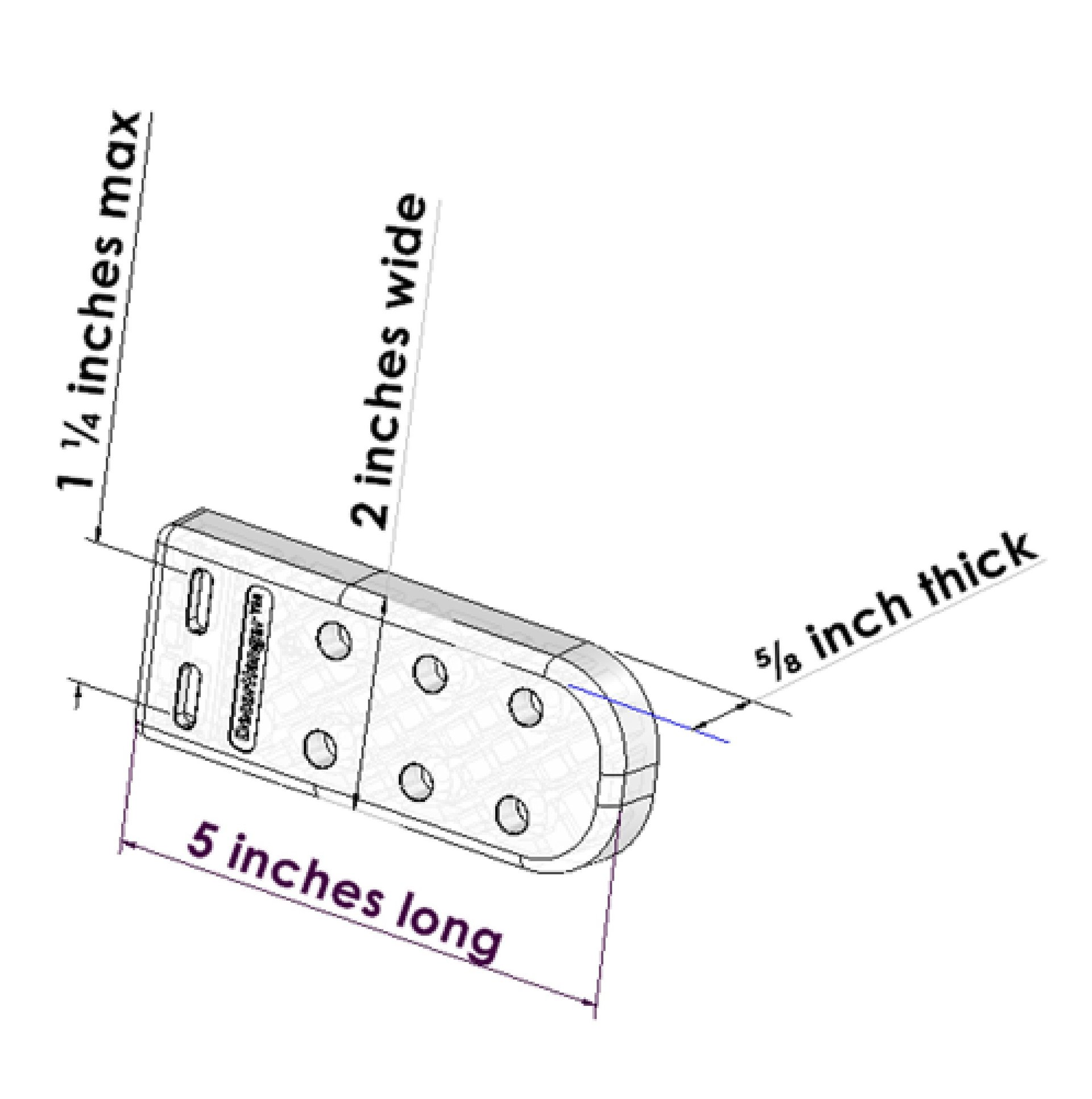

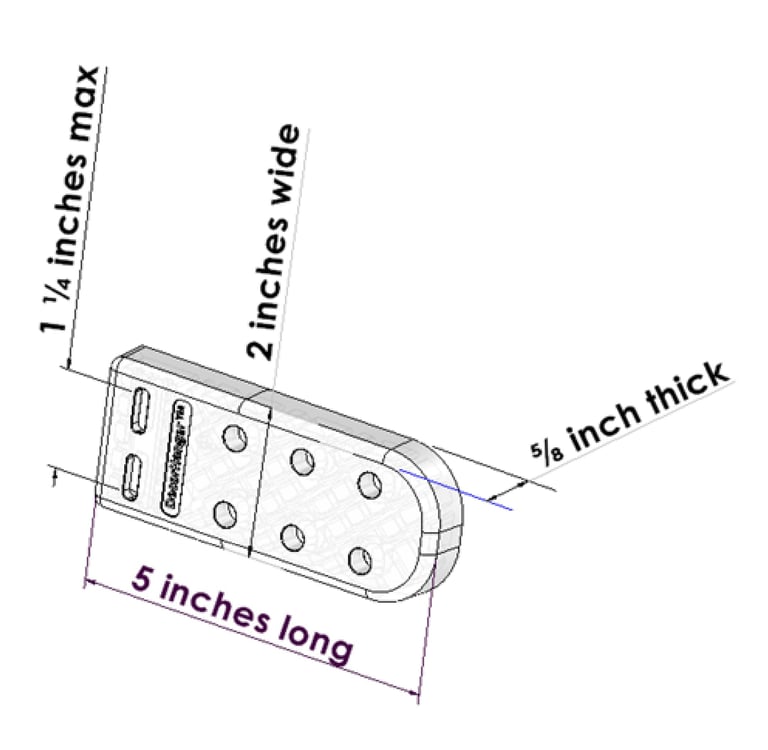

The NZJOVQWP Adapter Bracket is thick and strong - 5 inches long by 2 inches wide by over 1/2 inch thick. Actual dimensions are 5" x 2" x 5/8".

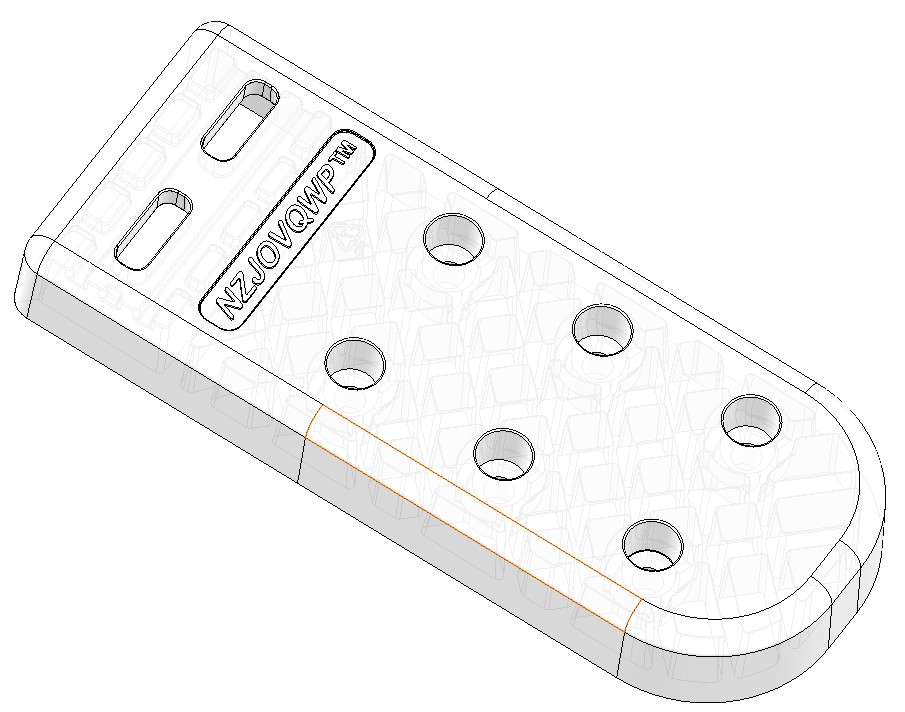

NZJOVQWP Adapter Bracket

Your curtain rod bracket (not supplied)

Includes

Two identical NZJOVQWP Adapter Brackets

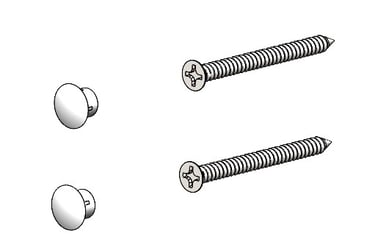

All fasteners and hardware.

Does not include

Your curtain rod bracket

______________________

(not included)

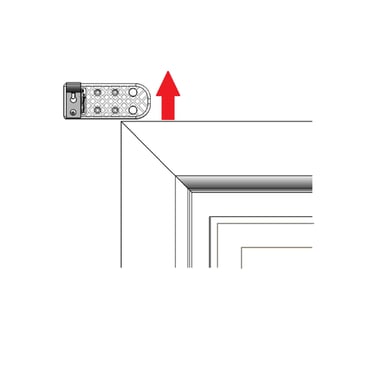

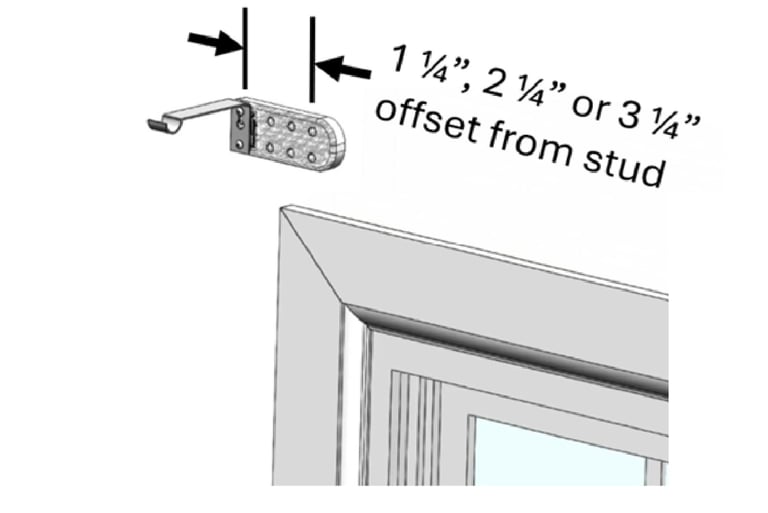

Above trim only

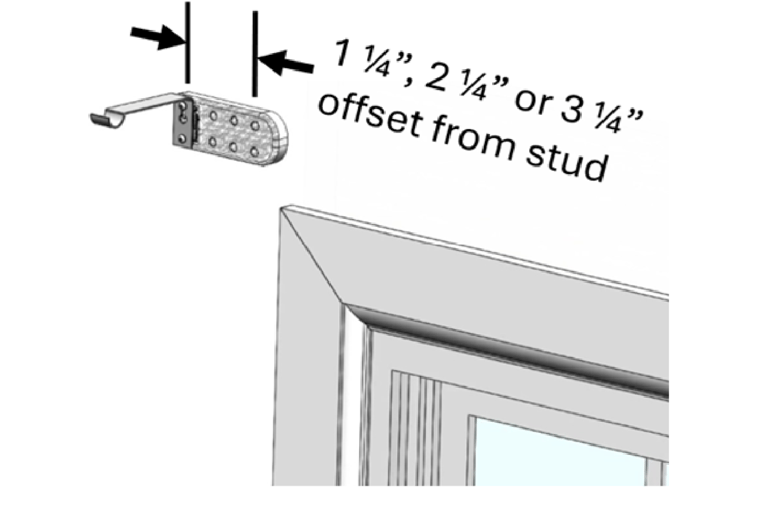

The NZJOVQWP Adapter Bracket must be positioned above the window trim to align with the underlying wall stud.

trim

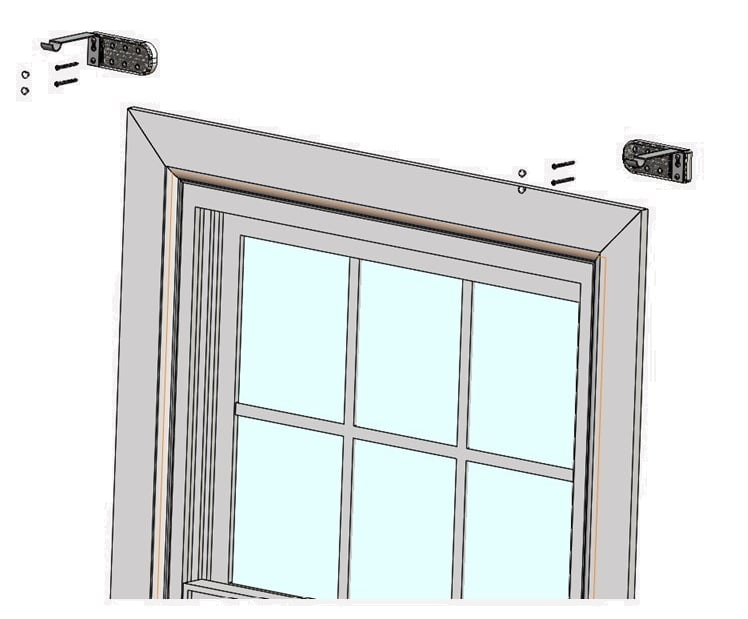

Installation Step 1

Using the supplied screws and square nuts, attach your curtain rod bracket to the NZJOVQWP Adapter Bracket.

Installation

Installation Step 2

Locate the wall stud. We recommend using a stud finder. (available at any hardware store)

Installation Step 3

Using the supplied 2-inch wood screws, attach the NZJOVQWP Adapter Bracket to the wall by screwing thru the drywall and into the wooden wall stud.

• Install the supplied hole caps. (optional).

Thats it!

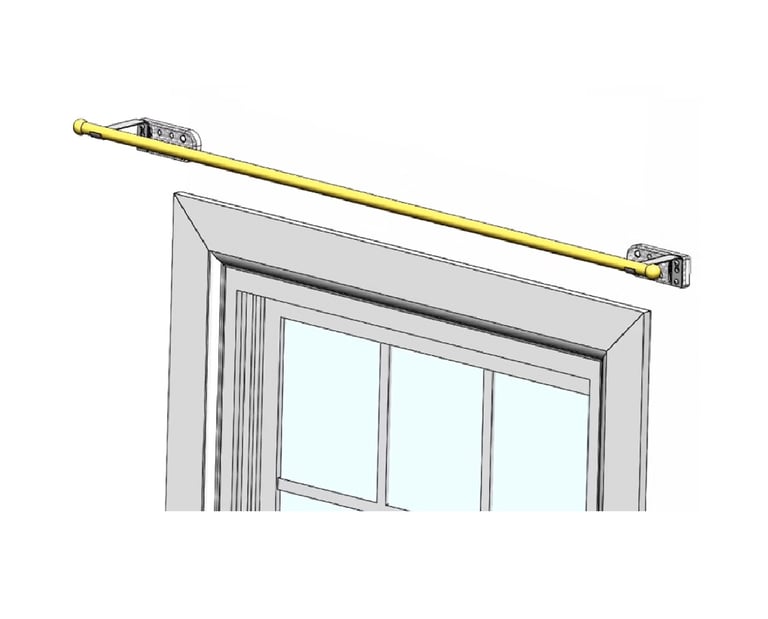

Your curtain rod bracket is now located beyond the edge of the window trim without using drywall anchors.

The NZJOVQWP Adapter Bracket attaches it to the stud!
